Guide Alignment Designed Smd Splice Tape For Panasonic Machine

Name: Guide Alignment Designed Smd Splice Tape For Panasonic Machine
Brand: KangHongJin
SKU: M13 series
Rating: 4.5 (112 reviews)

Product Details

Product Name:

M13 Series

Material:

PET

High Light:

Splice Tape, SMT Tape, SMT Panasonic Splice Tape, SMT Special Splice Tape, Splice Tape For Panasonic

Product Description

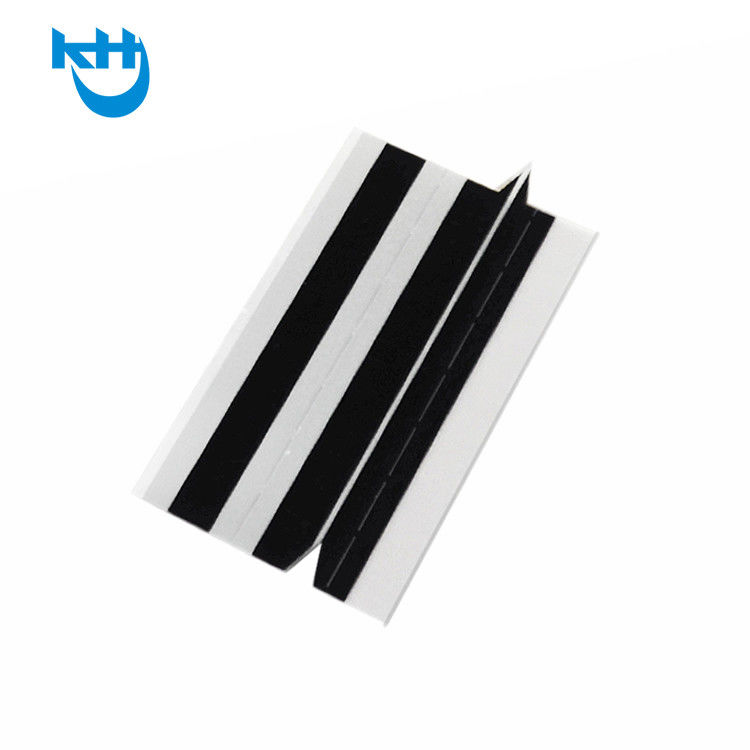

Guide Alignment Designed Smd Splice Tape For Panasonic Machine 0

DESCRIPTION

M013 series splice tape are used in jointing carrier tapes for Panasonic machine, whose sensor

detects jointing points via matt black color of this types of splice tape This splice tape is made by

our produced glue with superior adhesion.

APPLICATION	ADVANTAGES
1. Strips of PET tape used to join	1. Increase Pick and Place machine output
8-88mm SMT carrier tapes	by 5% - 30%
2. Suitable for Panasonic FUJI	2. Reduce reel change downtime
3. Sharp corner design, increased success rate	3. Decrease machine abrasion by reducing
4. 3 splice tapes design	the need to reload the feeder
	4. Guide alignment, easy operation
	without the use of auxiliary tools

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the split liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with guide alignment.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.

Guide Alignment Designed Smd Splice Tape For Panasonic Machine
