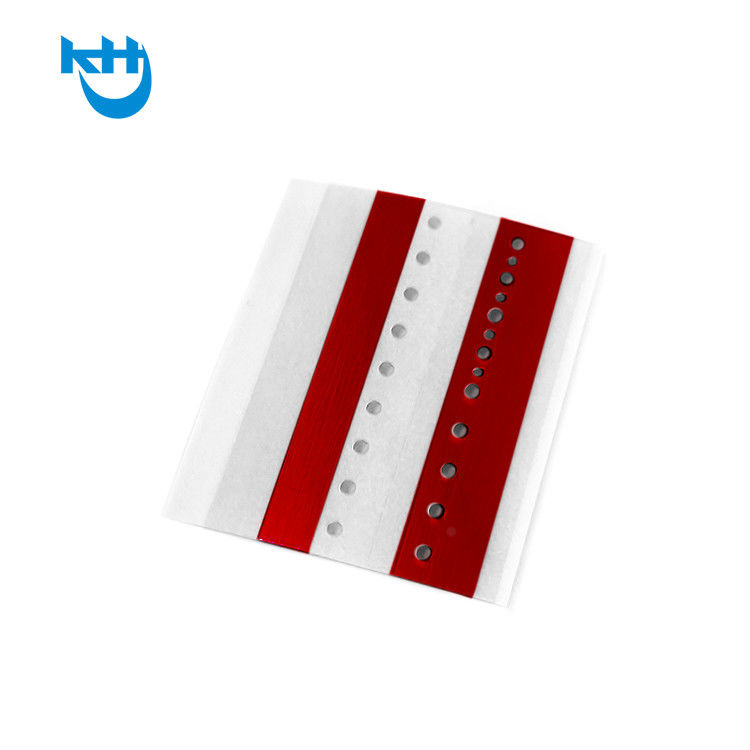

Conductive Red Splicing Tape SMT Joint Tape With Intelligent Feeder

A similar design for Fuji machines with an intelligent feeder. Each size has placement holes that can

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice tape placement holes.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.
