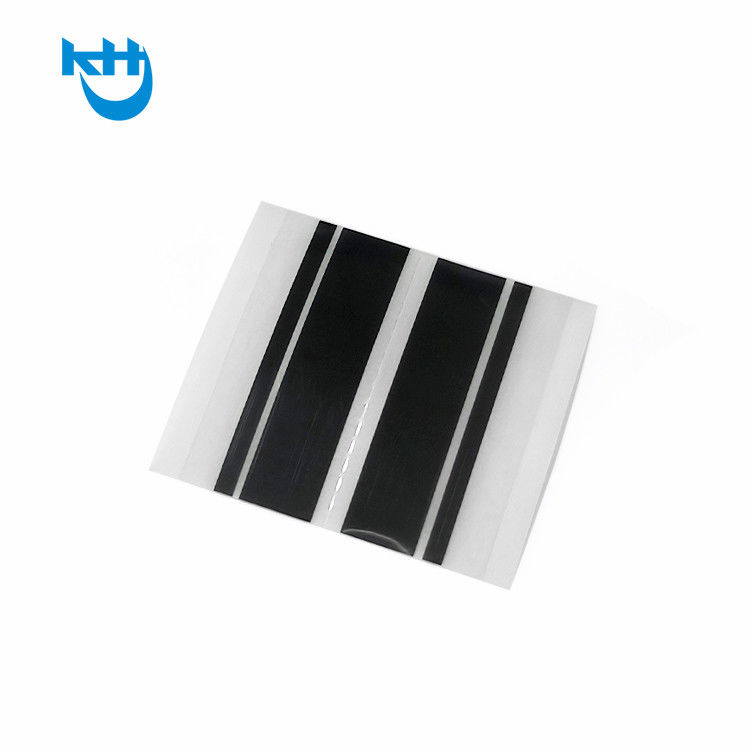

Electronic Assembly SMT Splicing Tape 12mm Reduce Reel Change Downtime

M23 series single splice tape is used for jointing carrier tapes in the SMT process. It is made of 4

1. Use the splice cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice guide placement

4. Fold over the other strip to the underside of the carrier tape and press firmly

5. Remove the guide placement from joined carrier tapes

6. Remove and discard the clear plastic cover to complete the splice
