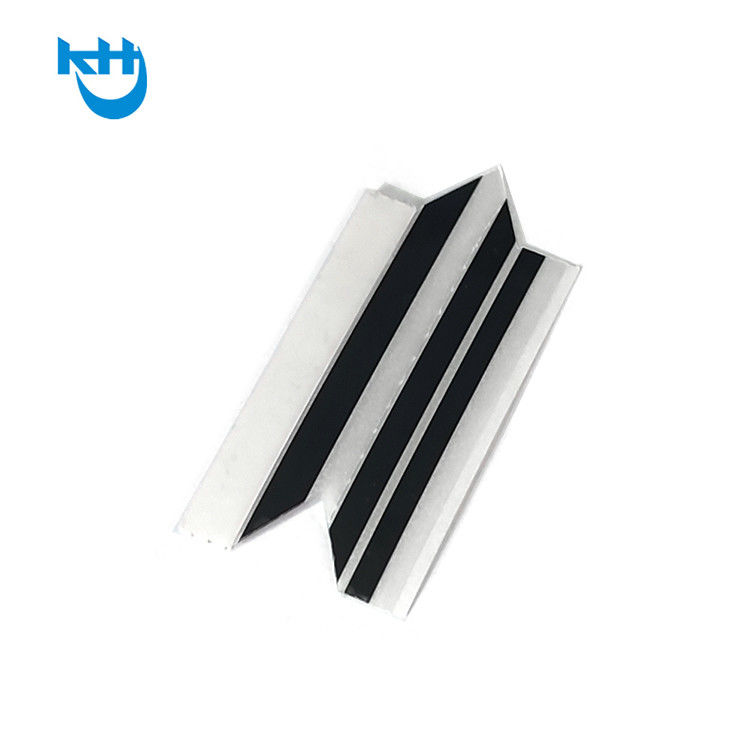

Panasonic Machine Used 8mm SMT Splicing Tape With Acrylic Adhesive

Name: Panasonic Machine Used 8mm SMT Splicing Tape With Acrylic Adhesive
Brand: KangHongJin
SKU: M22 series
Rating: 4.9 (122 reviews)

Place of Origin	Guangdong, China
Brand Name	KangHongJin
Certification	RoHS
Model Number	M22 series

Product Details

Product Name:

M22 Series

Material:

PET

High Light:

Acrylic Adhesive SMT Splice Tape, SMT Splice Tape For Panasonic Machine, Acrylic Adhesive SMT Carrier Tape

Payment & Shipping Terms

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P,.....

Product Description

Panasonic Machine Used 8mm SMT Splicing Tape With Acrylic Adhesive 0

DESCRIPTION

M022 Series SMT tapes are designed specifically for Panasonic machines with an intelligent feeder.

The black strip will allow the sensor to detect the splice.

This splice tape is made by our produced glue with superior adhesion.

Part (reel)	Dimensions (pc)	Package
M2208 (8mm)	4.8mm x 40mm	500pcs/box
M2212 (12mm)	6mm x 40mm	500pcs/box
M2216 (16mm)	9.5mm x 40mm	500pcs/box
M2224 (24mm)	16mm x 40mm	250pcs/box

APPLICATION	ADVANTAGES
1. Strips of PET tape used to join	1. Necessary for Panasonic machines with
8-88mm SMT carrier tapes	an intelligent feeder
2. Suitable for Panasonic machine	2. Reduce reel change downtime
3. Possible to use without the	3. The black strip allows the sensor to
splice tool and clip	detect the splice
	4. Placement holes for easy alignment

INSTRUCTIONS

1. Use the splice cutting tool to accurately cut the carrier tapes.

2. Place the splice tape (face down/Arrow>) on the alignment jig.

3. Remove the release liner of the splice tape to reveal the adhesive side

4. Place the cut carrier tapes (cover tape down) on the splice tape strip.

5. Remove the joined carrier tapes from the alignment jig.

6. Fold over the strips to the underside of the carrier tape and press firmly

7. Remove and discard the clear plastic cover to complete the splice.
