OEM ODM 16mm 24mm SMT Single Splice Tape With Copper Clip Buckle

Name: OEM ODM 16mm 24mm SMT Single Splice Tape With Copper Clip Buckle
Brand: KangHongJin
SKU: M08 series
Rating: 4.5 (105 reviews)

Product Details

Product Name:

M08 Series

Material:

PET

High Light:

ODM SMT Splice Tape, OEM SMT Splice Tape, ODM Film Splicing Tape

Product Description

M08 Series SMT 8mm /12mm /16mm/ 24mm Splice Tape With Copper Clip Buckle For Splicing Tape

DESCRIPTION

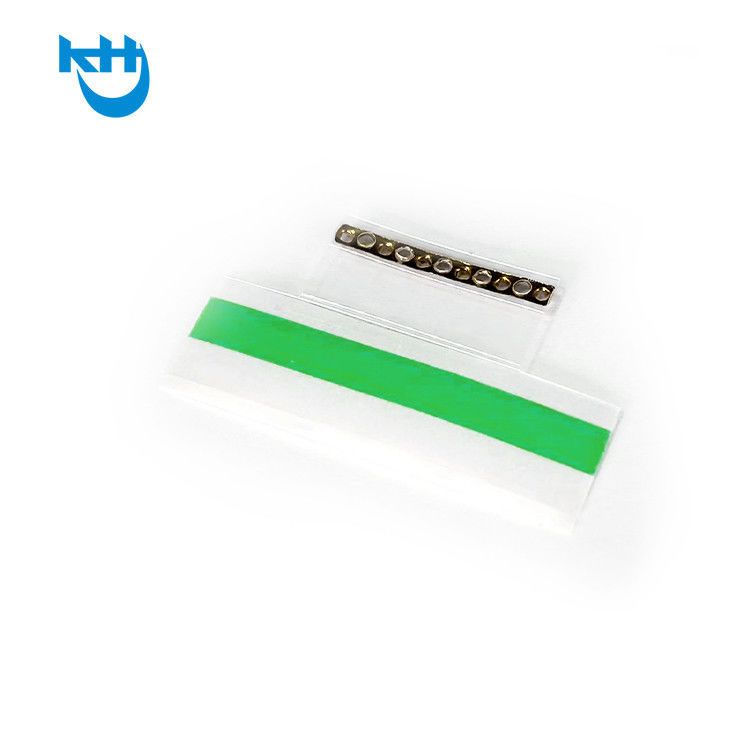

M08 series Splice Tape With Clip is a labor-saving innovative design with strips of tape connected

with a splice clip in one piece. Also designed for Panasonic machines with an intelligent feeder.

Compatible with the MTL00, MTL10 and MTL50 splice tools.

APPLICATION	ADVANTAGES
1. Green strips of PET tape conveniently	1. Colors: Yellow, blue, green and black.
connected with a splice clip used to join	Anti-static, half anti-static and non anti-static
SMT carrier tapes	2. Improves process efficiency
2. Use with the splice tool	3. High viscosity and stability.
(MTL00/MTL10/MTL50)	4. One tape with one clip for convenient storage
4. Suitable for Siemens and Fuji machine

INSTRUCTIONS

1. Use the cutting tool (MTL00/MTL10/MTL50) to accurately cut the carrier tapes.

2. Place a splice clip (teeth up) on the splice tool’s placement pins.

3. Center both cut carrier tapes on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Remove the release liner of the splice tape to reveal the adhesive side.

6. Fold over the tape strip onto the cover tape and press firmly.

7. Remove and discard the clear plastic cover to complete the splice.
