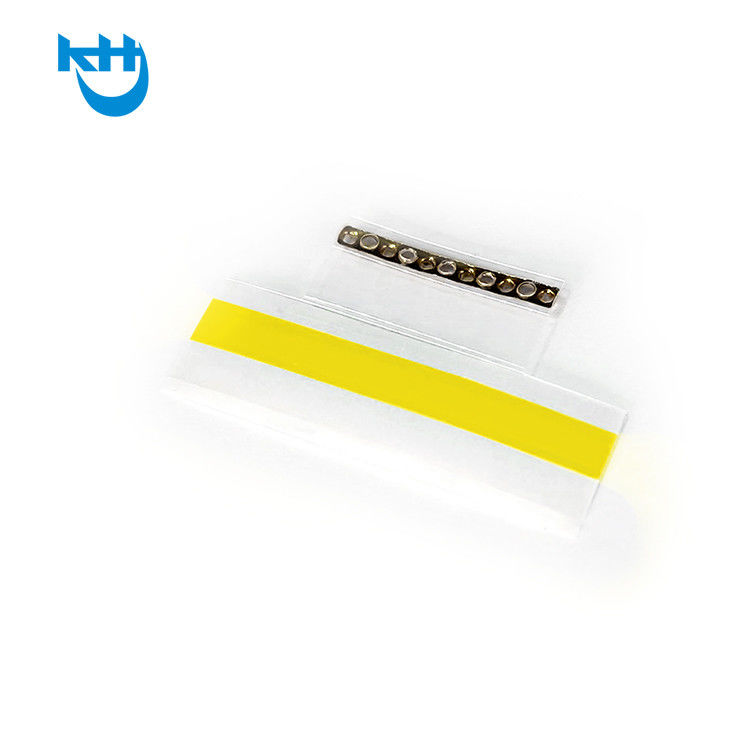

Yellow PET 8mm Splicing Tape SMT Splice Tape For Siemens Feeders

Name: Yellow PET 8mm Splicing Tape SMT Splice Tape For Siemens Feeders
Brand: KangHongJin
SKU: M08 series
Rating: 4.8 (137 reviews)

Place of Origin	Guangdong, China
Brand Name	KangHongJin
Certification	RoHS
Model Number	M08 series

Product Details

Product Name:

M08 Series

Material:

PET

High Light:

ODM SMT Splice Tape, OEM SMT Splice Tape, ODM Film Splicing Tape

Payment & Shipping Terms

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P,.....

Product Description

SMT Splice Tape 8mm/12mm/16mm/24mm Yellow SMT single splice tape with clip for Siemens feeders Yellow PET 8mm Splicing Tape SMT Splice Tape For Siemens Feeders 0

DESCRIPTION

M08 series Splice Tape With Clip is a labor-saving innovative design with strips of tape connected

with a splice clip in one piece. Also designed for Panasonic machines with an intelligent feeder.

Compatible with the MTL00, MTL10 and MTL50 splice tools.

Part (reel)	Dimensions (pc)	Package
M0808 (8mm)	4.8mm x 40mm	500pcs/box
M0812 (12mm)	6mm x 40mm	500pcs/box
M0816 (16mm)	9.5mm x 40mm	500pcs/box
M0824 (24mm)	18mm x 40mm	250pcs/box

APPLICATION	ADVANTAGES
1.Yellow strips of PET tape conveniently	1. Necessary for Siemens machines with
connected with a splice clip used to join	an intelligent feeder
SMT carrier tapes	2. Improves process efficiency
splice tool and clip	3. The black strip allows the sensor to
2. Use with the splice tool	detect the splice
(MTL00/MTL10/MTL50)	4. Labor-saving innovative design
4. Wide base paper design for easy removal.

INSTRUCTIONS

1. Use the cutting tool (MTL00/MTL10/MTL50) to accurately cut the carrier tapes.

2. Place a splice clip (teeth up) on the splice tool’s placement pins.

3. Center both cut carrier tapes on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Remove the release liner of the splice tape to reveal the adhesive side.

6. Fold over the tape strip onto the cover tape and press firmly.

7. Remove and discard the clear plastic cover to complete the splice.
