Home > products > SMT Single Splice Tape >

RoHS Approval Universal SMT Single Splice Tape With Clip M08 Series

Name: RoHS Approval Universal SMT Single Splice Tape With Clip M08 Series
Brand: KangHongJin
SKU: M08 series
Rating: 4.8 (184 reviews)

Place of Origin	Guangdong, China
Brand Name	KangHongJin
Certification	RoHS
Model Number	M08 series

Product Details

Product Name:

M08 Series

Material:

PET

High Light:

Splicing SMT, SMT Splice Tape, 2023s Smt Splice Tape, Splicing Tape With Clips, SMT Splice Tape, Splice Clips Reliable Jointing

Payment & Shipping Terms

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P,.....

Product Description

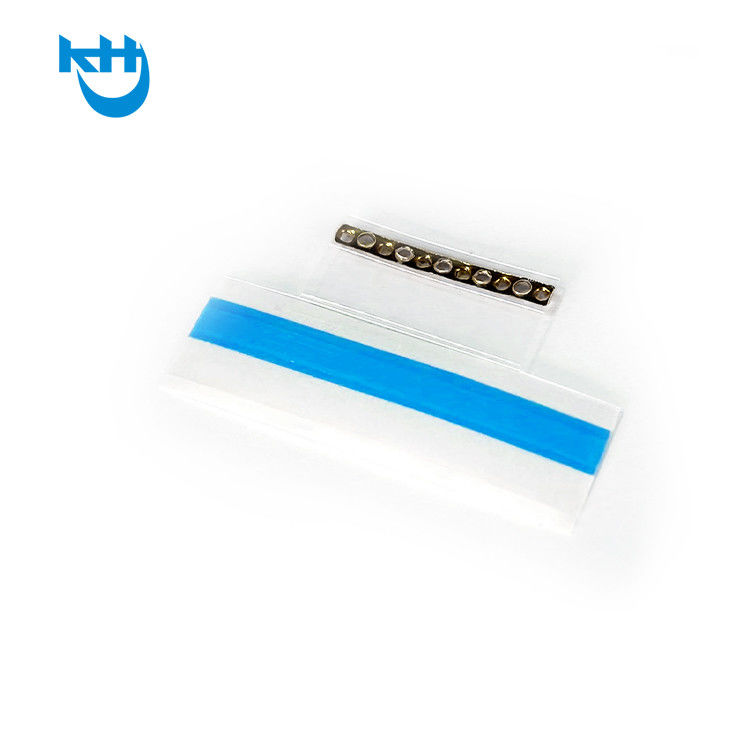

M08 Series Smt Single Splice Tape With Clip

RoHS Approval Universal SMT Single Splice Tape With Clip M08 Series 0

DESCRIPTION

M0808 Splice Tape With Clip is a labor-saving innovative design with strips of tape connected with

a splice clip in one piece. Also designed for Panasonic machines with an intelligent feeder.

Compatible with the MTL00, MTL10 and MTL50 splice tools.

Part (reel)	Dimensions (pc)	Package
M0808 (8mm)	4.8mm x 40mm	500pcs/box
M0812 (12mm)	6mm x 40mm	500pcs/box
M0816 (16mm)	9.5mm x 40mm	500pcs/box
M0824 (24mm)	18mm x 40mm	250pcs/box

APPLICATION	ADVANTAGES
1. Blue strips of PET tape conveniently	1. Necessary for Siemens machines with
connected with a splice clip used to join	an intelligent feeder
SMT carrier tapes	2. Improves process efficiency
2. Use with the splice tool and clip	3. The black strip allows the sensor to
(MTL00/MTL10/MTL50)	detect the splice
3. Wide base paper design for easy removal.	4. Labor-saving innovative design

INSTRUCTIONS

1. Use the cutting tool (MTL00/MTL10/MTL50) to accurately cut the carrier tapes.

2. Place a splice clip (teeth up) on the splice tool’s placement pins.

3. Center both cut carrier tapes on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Remove the release liner of the splice tape to reveal the adhesive side.

6. Fold over the tape strip onto the cover tape and press firmly.

7. Remove and discard the clear plastic cover to complete the splice.
