8mm 12mm 16mm 24mm Reel To Reel Splicing Tape SMT Tape Yellow

Name: 8mm 12mm 16mm 24mm Reel To Reel Splicing Tape SMT Tape Yellow
Brand: KangHongJin
SKU: M01 series
Rating: 4.9 (176 reviews)

Place of Origin	Guangdong, China
Brand Name	KangHongJin
Certification	RoHS
Model Number	M01 series

Product Details

Product Name:

M01 Series

Material:

PET

High Light:

Siemens Splice Tape, Tape Splice, Siemens Special Splice Tape, Splice Tape For Siemens And Fuji Machine，Fuji Splice Tape

Product Description

M01 series SMD Yellow Splicing Tape SMT Double Splice Tape 8mm,12mm,16mm,24mm 8mm 12mm 16mm 24mm Reel To Reel Splicing Tape SMT Tape Yellow 0

DESCRIPTION

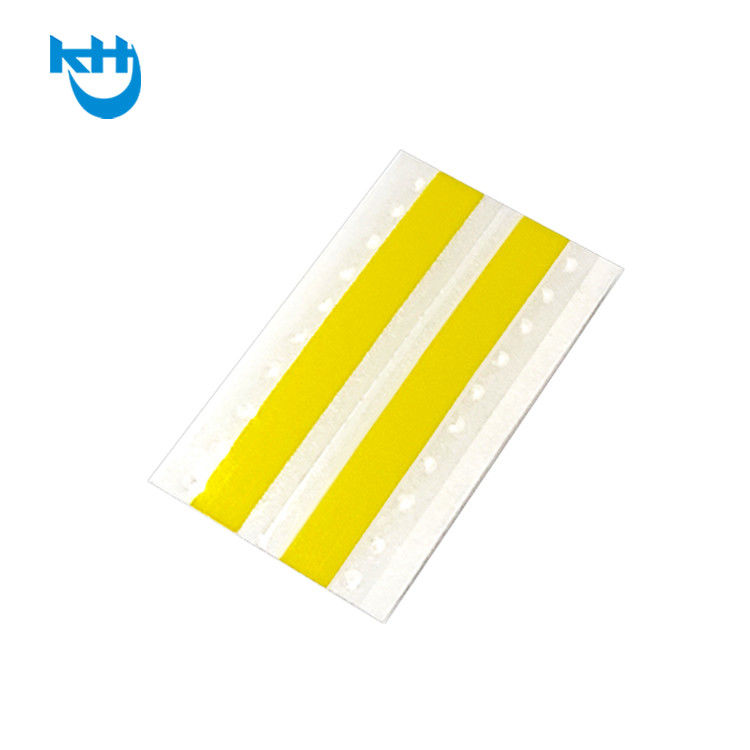

Double Splice Tapes are used to join SMT component carrier tapes. Supplied in pre-cut strips of

PET tape, use without the splice tool and clip. Each piece has 10 embossed dots on either side to

help align with the carrier tape. Three kinds of anti-static, half anti-static and non anti-static.

Part (reel)	Dimensions (pc)	Package
M0108 (8mm)	4.8mm x 40mm	500pcs/box
M0112 (12mm)	6mm x 40mm	500pcs/box
M0116 (16mm)	9.5mm x 40mm	500pcs/box
M0124 (24mm)	16mm x 40mm	250pcs/box

APPLICATION	ADVANTAGES
1. Double strips of PET tape used to	1. Increase Pick and Place machine output
join SMT carrier tapes	by 5% - 30%
2. Possible to use with or without the	2. Reduce reel change downtime
splice tool and clip	3. Decrease machine abrasion by reducing
3. 32mm-44mm available upon request	the need to reload the feeder
	4. Guide indentations for easy alignment

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Place a splice clip (teeth up) on the splice tool’s placement pins.

3. Center both cut carrier tapes on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Remove the release liner of the splice tape to reveal the adhesive side.

6. Fold over the tape strip onto the cover tape and press firmly.

7. Remove and discard the clear plastic cover to complete the splice.
