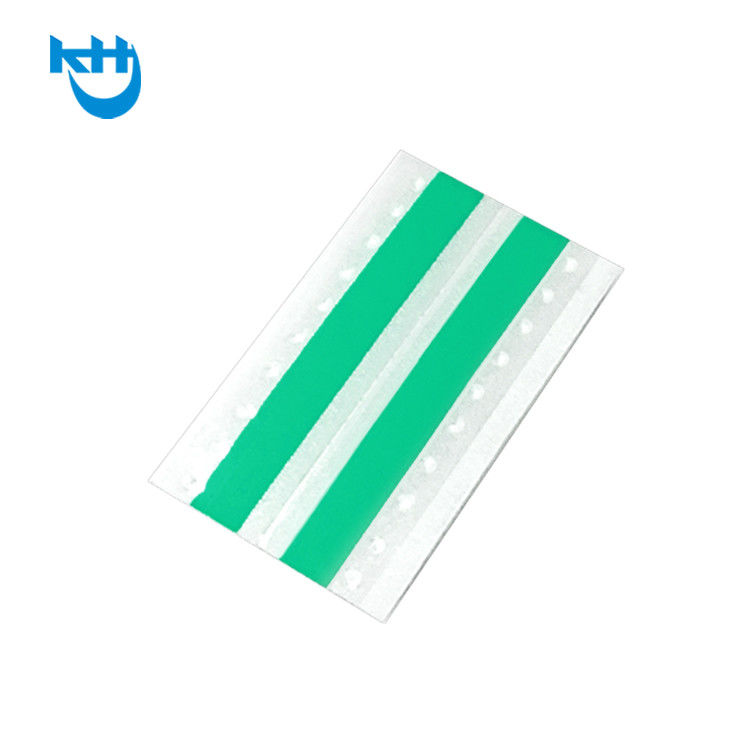

M01 Series PET SMT Double Splice Tape With Double Embossed Dots
  • M01 Series PET SMT Double Splice Tape With Double Embossed Dots
  • M01 Series PET SMT Double Splice Tape With Double Embossed Dots
  • M01 Series PET SMT Double Splice Tape With Double Embossed Dots
  • M01 Series PET SMT Double Splice Tape With Double Embossed Dots
M01 Series PET SMT Double Splice Tape With Double Embossed Dots

M01 Series PET SMT Double Splice Tape With Double Embossed Dots

Place of Origin Guangdong, China
Brand Name KangHongJin
Certification RoHS
Model Number M01 series
Product Details
Product Name:
M01 Series
Material:
PET
High Light:
SMT Double Splice Tape, New Arrival Smt Splice Tape, SMT Splice Tape Wholesaler, SMT Splice Tape，tesa Splicing Tape
Product Description

M01 series SMT Double Splice Tape with double embossed dots designed apply for all sizes(8mm-88mm) of carrier tapeM01 Series PET SMT Double Splice Tape With Double Embossed Dots 0

DESCRIPTION

Double Splice Tapes are used to join SMT component carrier tapes. Supplied in pre-cut strips of
PET tape, use without the splice tool and clip. Each piece has 10 embossed dots on either side to
help align with the carrier tape. Three kinds of anti-static, half anti-static and non anti-static.





Part (reel)
Dimensions (pc)
Package
 M01 Series PET SMT Double Splice Tape With Double Embossed Dots 1
M0108 (8mm) 4.8mm x 40mm 500pcs/box
M0112 (12mm) 6mm x 40mm 500pcs/box
M0116 (16mm) 9.5mm x 40mm 500pcs/box
M0124 (24mm) 16mm x 40mm 250pcs/box



APPLICATION ADVANTAGES

1. Green double strips of PET tape used to

1. Increase Pick and Place machine output

    join SMT carrier tapes

    by 5% - 30%

2. Possible to use with or without the

2. Reduce reel change downtime

    splice tool and clip

3. Decrease machine abrasion by reducing

3. 32mm-44mm available upon request

     the need to reload the feeder
  4. Guide indentations for easy alignment



INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the holes of the carrier tapes (cover tape down) with the guide indentations.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.



M01 Series PET SMT Double Splice Tape With Double Embossed Dots 2
