Edge Positioning Blue Double Sided Splicing Tape SMT Consumables

Name: Edge Positioning Blue Double Sided Splicing Tape SMT Consumables
Brand: KangHongJin
SKU: M05 series
Rating: 4.8 (190 reviews)

Product Details

Product Name:

M05 Series

Material:

PET

High Light:

SMT Double Splice Tape, New Arrival Smt Splice Tape, SMT Splice Tape Wholesaler, SMT Splice Tape，tesa Splicing Tape

Product Description

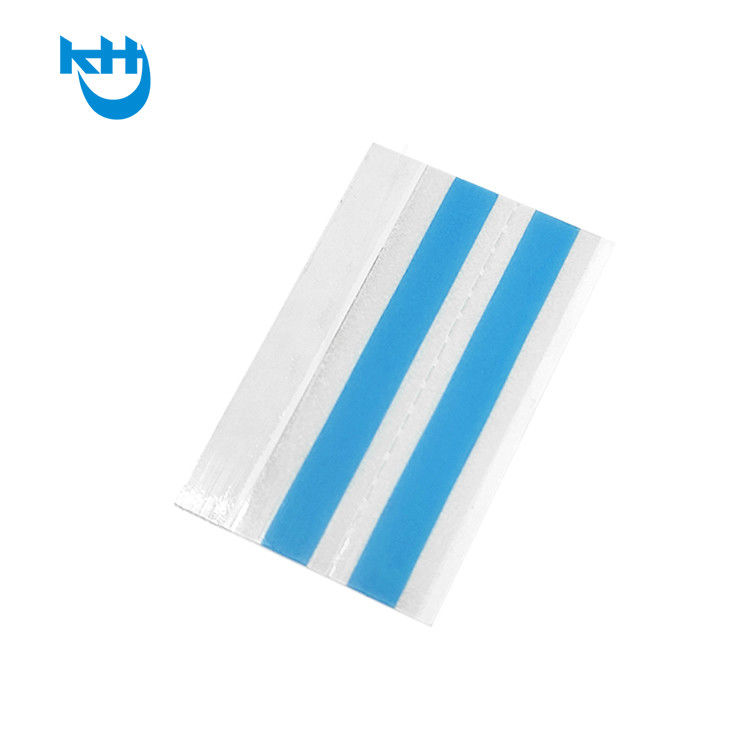

Edge Positioning Blue Double Sided Splicing Tape SMT Consumables 0

DESCRIPTION

M0508 double splice tape has a light blue transparent PET material. This design has a placement

guide to easily align cut carrier tapes. All sizes are supplied 500pcs/box.

APPLICATION	ADVANTAGES
1. Double strips of transparent blue PET	1. Increase Pick and Place machine output
tape used to join SMT carrier tapes	by 5% - 30%
2. Possible to use with or without the	2. Reduce reel change downtime
splice tool and clip	3. Decrease machine abrasion by reducing
3. 32mm-44mm available upon request	the need to reload the feeder
4. Accept OEM/EDM	4. Placement guide for easy alignment

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the placement guide.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover and guide to complete the splice.
