8 Holes Positioning Universal SMT Double Splice Tape M15 Series

Name: 8 Holes Positioning Universal SMT Double Splice Tape M15 Series
Brand: KangHongJin
SKU: M15 series
Rating: 5 (126 reviews)

Product Details

Product Name:

M15 Series

Material:

PET

High Light:

OEM SMT Splice Tape, 8 Holes Positioning Universal Splice Tape, SMT Tape, SMT Double Splice Tape, SMT Special Splice Tape, SMT Splice Products

Product Description

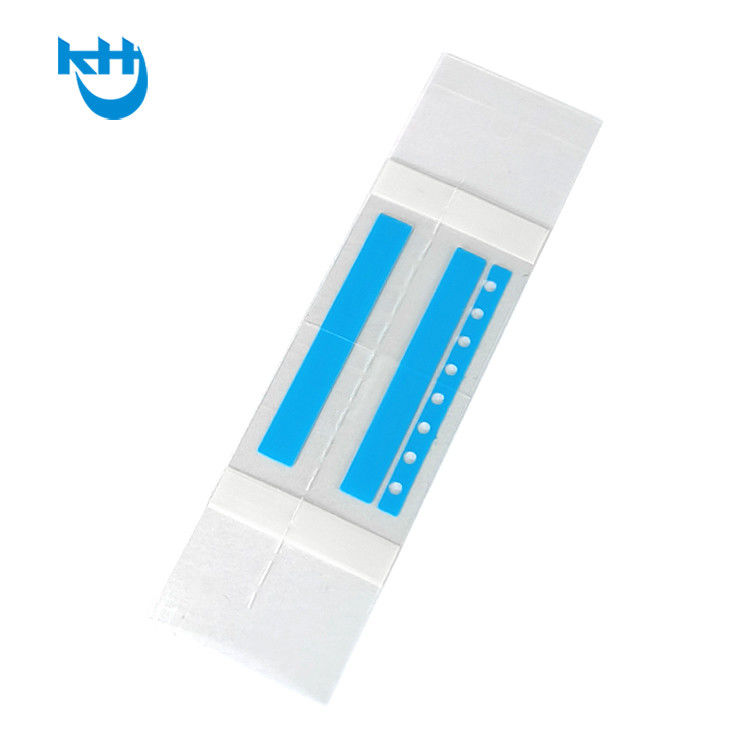

M15 series 8 Holes Positioning Universal Splice Tape

DESCRIPTION

M15 series splice tape is used for jointing carrier tapes in the SMT process. It is made of tapes and

polyester film and release paper, and the tape is with superior adhesion.

APPLICATION	ADVANTAGES
1. Strips of PET tape used to join	1. Increase Pick and Place machine output
8mm SMT carrier tapes	by 5% - 30%
2. Possible to use without the splice tool	2. Reduce reel change downtime
and clip	3. Decrease machine abrasion by reducing
4. 3 splice tapes design	the need to reload the feeder
	4. Placement holes for easy alignment

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Remove the split liner of the splice tape to reveal the adhesive side.

3. Align the cut carrier tapes (cover tape down) with the splice tape placement holes.

4. Place both joining carrier tapes onto the first strip of the splice tape.

5. Fold over the second strip to the underside of the carrier tape and press firmly.

6. Remove and discard the clear plastic cover to complete the splice.
