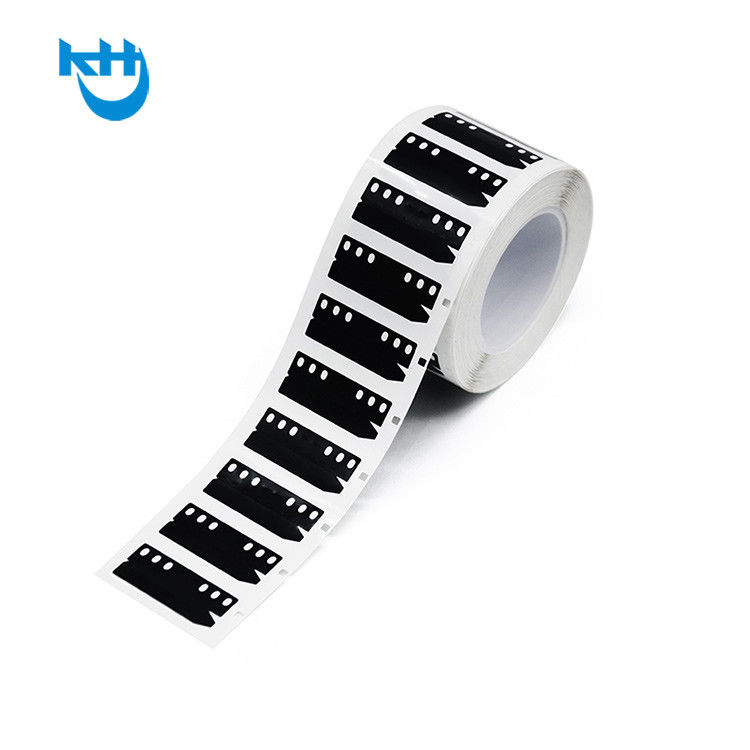

M3308 8mm Black Metal Sense SMT Splicing Tape With Superior Adhesion

Name: M3308 8mm Black Metal Sense SMT Splicing Tape With Superior Adhesion
Brand: KangHongJin
SKU: M3308
Rating: 4.5 (130 reviews)

Product Details

Product Name:

M3308

Material:

PET

High Light:

Metal Sense SMT Splicing Tape, SMT Splicing Tape With Superior Adhesion, 8mm Splicing Tape With Superior Adhesion

Product Description

M3308 8mm Black Metal Sense SMT Splicing Tape With Superior Adhesion

DESCRIPTION

M3308 Black splice tape is used for jointing carrier tapes in the SMT process,It is made of tapes,

transparent release film and removable PET,and the tape is made by our produced patent material

with superior adhesion.

Part (reel)	Dimensions (pc)	Material	Package
M3308 (8mm)	12.5mm x 32mm	PET	500pcs/box

APPLICATION	ADVANTAGES
1. Ideal for automatic splicing machine, high	1. Increase Pick and Place machine output
jointing efficiency.	by 5% - 30%
2. Especially used for automatic splicing	2. The silver strip allows the sensor to
machines	detect the splice
3. Available for 8mm carrier tapes.	3. Placement holes for easy alignment

INSTRUCTIONS

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Place both joining carrier tapes onto the first strip of the splice tape.

4. After sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.

M3308 8mm Black Metal Sense SMT Splicing Tape With Superior Adhesion
