Automatic Splicing Machine Used 8mm Splice Tape SMT Consumables

Name: Automatic Splicing Machine Used 8mm Splice Tape SMT Consumables
Brand: KangHongJin
SKU: M3308B
Rating: 4.6 (191 reviews)

Product Details

Product Name:

M3308B

Material:

PET

High Light:

8mm ESD SMT Splice Tape, Automatic Splicing Machine SMT Splice Tape, ESD 8mm Splicing Tape

Product Description

Automatic Splicing Machine Used 8mm Splice Tape SMT Consumables 0

DESCRIPTION

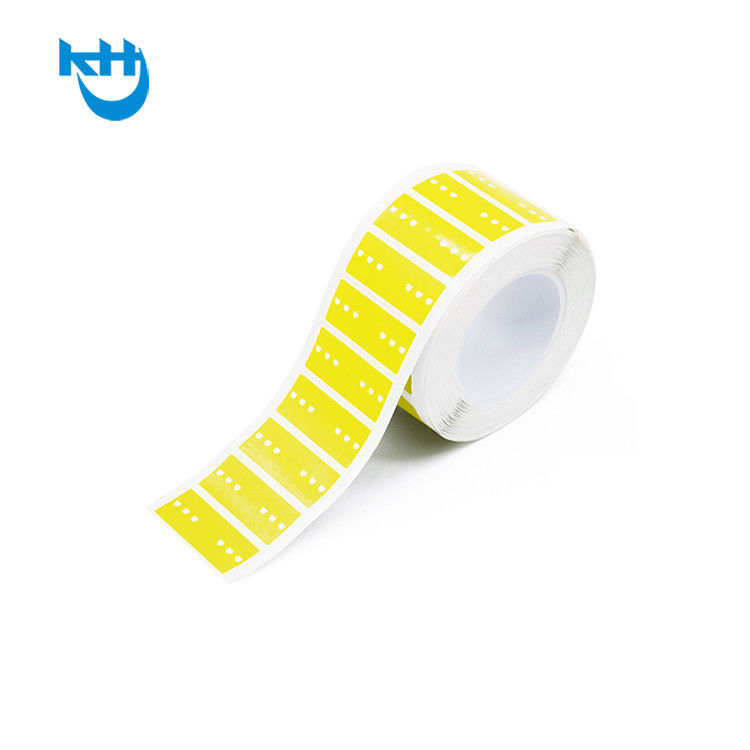

M3308B Yellow splice tape is used for jointing carrier tapes in the SMT process,It is made of tapes,

transparent release film and removable PET,and the tape is made by our produced patent material

with superior adhesion.

Part (reel)	Dimensions (pc)	Material	Package
M3208B (8mm)	12.5mm x 32mm	PET	500pcs/box

APPLICATION	ADVANTAGES
1. Ideal for automatic splicing machine, high	1. Increase Pick and Place machine output
jointing efficiency.	by 5% - 30%
2. Especially used for automatic splicing	2. The silver strip allows the sensor to
machines	detect the splice
3. Available for 8mm carrier tapes.	3. Placement holes for easy alignment

INSTRUCTIONS

1. Use the cutting tool to accurately cut the carrier tapes.

2. Remove the release liner of the splice tape to reveal the adhesive side.

3. Place both joining carrier tapes onto the first strip of the splice tape.

4. After sticking it onto carrier tapes, press it tightly at different locations on carrier tapes.
