MTL10 Handle SMT Splice Tools Used With Splice Clips For Panasonic

Name: MTL10 Handle SMT Splice Tools Used With Splice Clips For Panasonic
Brand: KangHongJin
SKU: MTL10
Rating: 4.6 (149 reviews)

Product Details

Product Name:

MTL10

Material:

Steel Tool Body+Plastic Handle

High Light:

SMT Splice Tool, Tape Splicing Tool, Metal SMT Splice Tool, Tape Splicing Tool, Positioning SMT Splice Tool

Product Description

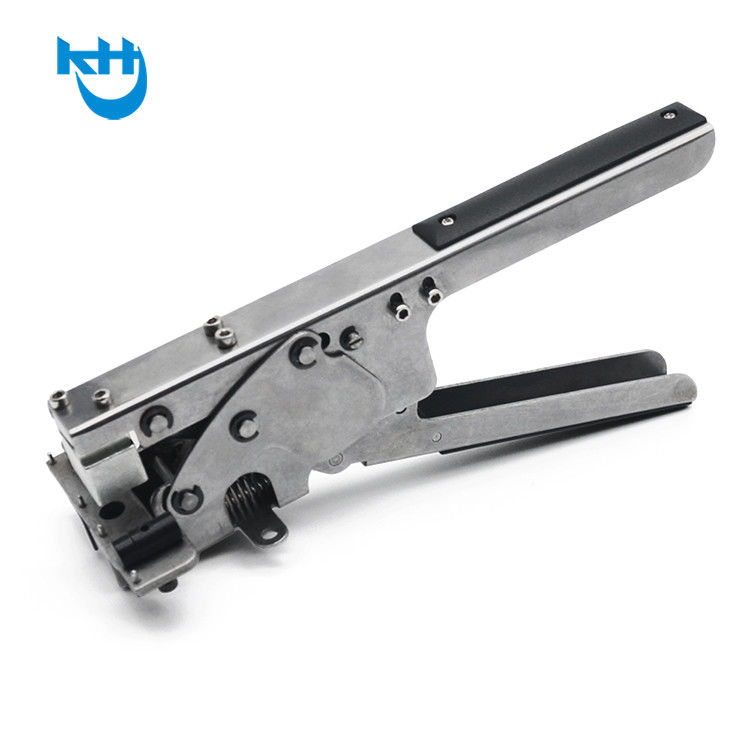

MTL10 Handle SMT Splice Tools Used With Splice Clips For Panasonic 0

DESCRIPTION

MTL10 Handle SMT splice plier used with M0600 splice clips for Panasonic. It is safety and do not

hurt hands tool. Ensure that SMD component tapes can be joinedsecurely and quickly.

Part	Dimensions	Material	Weight
MTL00	20cm x 5cm x 6.5cm	Steel Tool body+Plastic Handle	0.5kg

APPLICATION	ADVANTAGES
1. Handheld splice tool designed	1. 5mm placement pin guides for alignment
specifically for SMT carrier tapes	2. Clamps to secure carrier tapes
2. Use with the splice clip (M0600)	3. Ratchet style crimping tool
and splice tapes of any size	4. Ergonomically designed
3. Ensures carrier tapes of all widths can
be joined securely

INSTRUCTIONS

1. Crimp the tool handle to open the front panel jaws.

2. Place a splice clip (teeth up) on the placement pins.

3. Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Add a splice tape strip to the cover tape and press firmly to complete the splice.

MTL10 Handle SMT Splice Tools Used With Splice Clips For Panasonic
