RoHS Single People Operate SMT Splice Tools Splicing Cart K800

Name: RoHS Single People Operate SMT Splice Tools Splicing Cart K800
Brand: KangHongJin
SKU: K800
Rating: 4.6 (200 reviews)

Product Details

Product Name:

K800

Material:

Steel, Hollow Board

High Light:

SMT Splice Cart, Removable SMT Splicing Trolley With ESD Wheels, Removable SMT Splicing Trolley, SMT Splice Trolley With ESD Wheels

Product Description

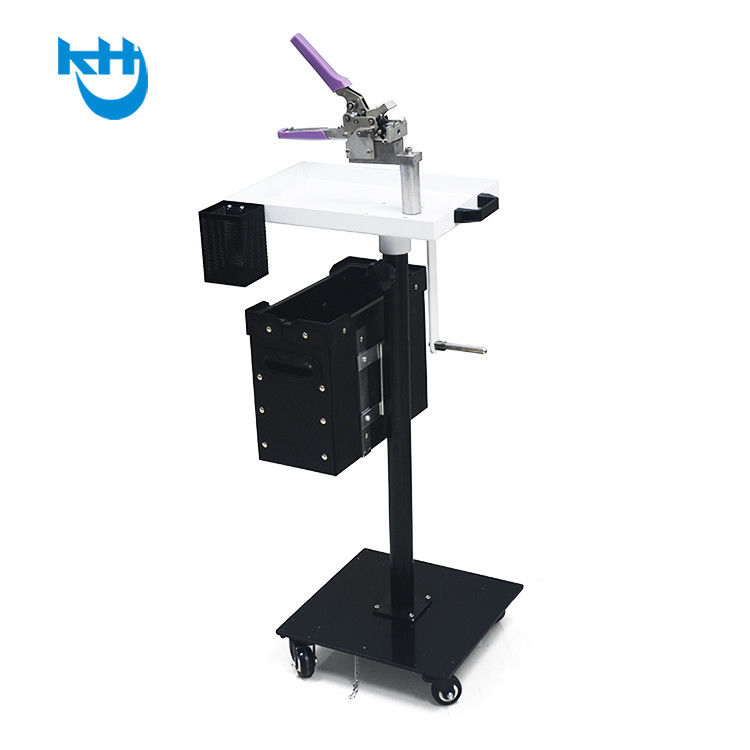

RoHS Single People Operate SMT Splice Tools Splicing Cart K800 0

DESCRIPTION

K800 SMT Splicing Tool ESD SMT Splice Cart. A trolley for the placement of splicing tool, clips

and tapes and equipped with rotatable wheels, it can be moved freely on different SMT production

lines.

Part	Dimensions	Material	Packing
K800	100~110cm x 42cm x 42cm	Steel body + Hollow board	1 Pcs per box

APPLICATION	ADVANTAGES
1. It can be moved freely on different	1. ESD design to eliminate the static
SMT production lines	damage in the production lines
2. Must be used with KangHongJin	2. Wheel rotatable can be movable around
splicing tool MTL60	production floor in all direction
3. Easy operation and good reliability,	3. Splicing plate: Height can be adjusted
improve the efficiency	900mm~1030mm.
	4. Special designed tool base and copper scrap
	collection box: splice plier can be rotated freely
	5. Junk box: simple and light with anti-static

INSTRUCTIONS

1. Adjust the SMT Splice Cart to make the height suitable for youreself

2. Place the component carrier tape on the 2mm or 4mm pitch placement pin guides.

3. Intall M0700 clips on MTL60

4.Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

5. Crimp the handle to connect the carrier tapes and remove

6. Add a splice tape strip to the cover tape and press firmly to complete the splice.

RoHS Single People Operate SMT Splice Tools Splicing Cart K800

splice pliers,
