MTL00 SMT Splice Tools With Adjustable C Bracket Ergonomically Designed

Name: MTL00 SMT Splice Tools With Adjustable C Bracket Ergonomically Designed
Brand: KangHongJin
SKU: MTL00
Rating: 4.6 (175 reviews)

Product Details

Product Name:

MTL00

Material:

Steel Tool Body+Plastic Handle

High Light:

Splice Tools, Tape Splicing Tool, Metal SMT Splice Tool, Tape Splicing Tool, SMT Splicing Pliers Tools

Product Description

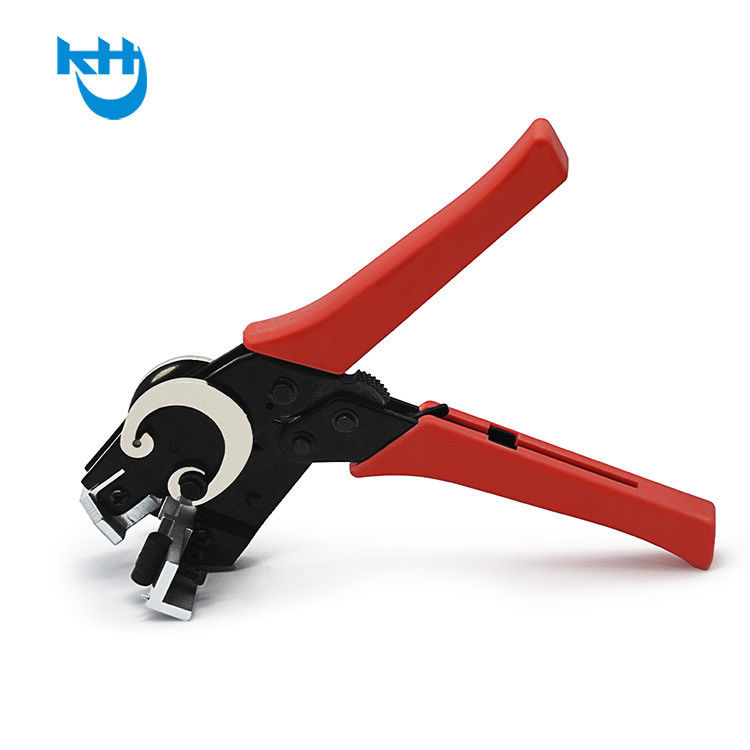

MTL00 SMT Splice Tools With Adjustable C Bracket Ergonomically Designed 0

DESCRIPTION

The MTL00 is an ergonomically designed handheld tool used to join carrier tape reels of all widths.

Compatible with the M0600 splice clips.The MTL00 is an ergonomically designed handheld tool

used to join carrier tape reels of all widths. Compatible with the M0600 splice clips.

Part	Dimensions	Material	Weight
MTL00	21cm x 7cm x 7cm	Steel Tool body+Plastic Handle	0.5kg

APPLICATION	ADVANTAGES
1. Handheld splice tool designed	1. 5mm placement pin guides for alignment
specifically for SMT carrier tapes	2. Clamps to secure carrier tapes
2. Use with the splice clip (M0600)	3. Ratchet style crimping tool
and splice tapes of any size	4. Ergonomically designed
3. Ensures carrier tapes of all widths can
be joined securely

INSTRUCTIONS

1. Crimp the tool handle to open the front panel jaws.

2. Place a splice clip (teeth up) on the placement pins.

3. Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

4. Crimp the handle to connect the carrier tapes.

5. Add a splice tape strip to the cover tape and press firmly to complete the splice.
