RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer
  • RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer
RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer

RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer

Place of Origin Guangdong, China
Brand Name KangHongJin
Certification RoHS
Model Number KK-801
Product Details
Product Name:
KK-801
Material:
PET Shell + Metal
High Light:
SMT Automatic Machine, SMD, SMD Automatic Counter, 801, Component Reel Counter, SMT
Product Description

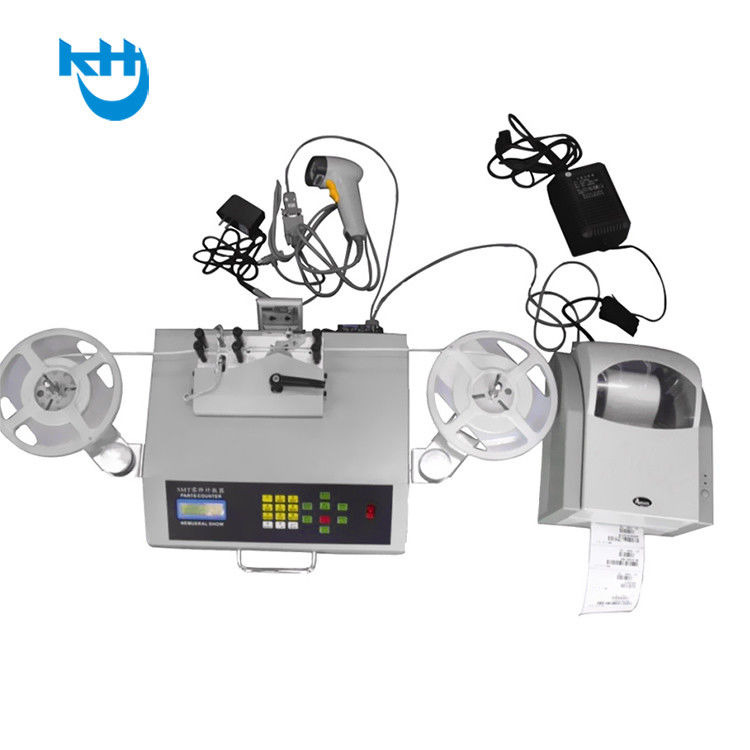

KK-801 SMD Automatic Counter Kit with Bar Code Scanner & Label Printer

RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer 0



DESCRIPTION

KK-801 SMD counter adopts the principle of photoelectric sensing,and uses the corresponding relation between

the guide hole and the part, through the special-purpose processing chip and the large-scale centralized circuit

processing, realizes the zero error,accurately measures the number of SMD parts, can realize the convenient and
quick count, is the high efficiency auxiliary equipment of SMT material management.

 Type

 K-IH881

 (smart

 design)

 K-801

 (enhanced

 version)

 K-801E

 (Common

 version)

 K-802E

 (smart

 design)

 K-802

 (smart

 design)

 K-IH882

 (smart

 design)
 Sliding sideways function  Not support  Support
 Set to number of material  Support  Support
 Print, scan  Support  Support

 The leftover material

 automatic stop

    Not support  Not support
 Automatic stop  Not support  Support
 Electrical machinery    42 stepper motor  42 stepper motor
 Multiple speed  8 files  3 files  3 files  8 files
 Voice broadcast  Support  Not support  Not support  Support

 Connection mes/ erpSystem

 (Secondary  development)

  Support
 Print barcode and QR code  Support
 Weight  11kg 10kg 10kg 11kg
 Dimension  730×230×270mm  750×340×190mm  750×340×190mm  730×230×270mm



INSTRUCTIONS
K-801E: There is no detection function for material issuing and stocktaking

K-801: There is no detection function for material issuing and stocktaking. The quality is better than 801E

K-802E: It has detection function for issuing and counting

K-802: It has the detection function of issuing materials and counting. The quality is better than 802E

K-IH881: There is no detection function for issuing and stocktaking. There is voice broadcast. The tailings stop

automatically and the discharging Angle is 45 degrees
K-IH882: It has the detection function of material issuing and inventory, voice broadcast, automatic stop of
tailings, and the discharging Angle is 45 degrees



 Power supply

 AC110V or AC220V (convertible)

 Capability

 200cm 600pcs per minute

 Power consumption

 30 W

 Counting volume

 -99999 ~ 99999pcs

 Size

 L350*W774*H184mm

 Weight

 10kg

 Reel Diameter

 Suitable for SMD Reel with any diameter

 Reel Interval Distance

 2,4,8,10,12,16,24,32,44,56mm

 Reel Width

 8,12,16,24,32,44,56mm





RoHS Automatic SMD Counter Machine With Bar Code Scanner And Label Printer 1
