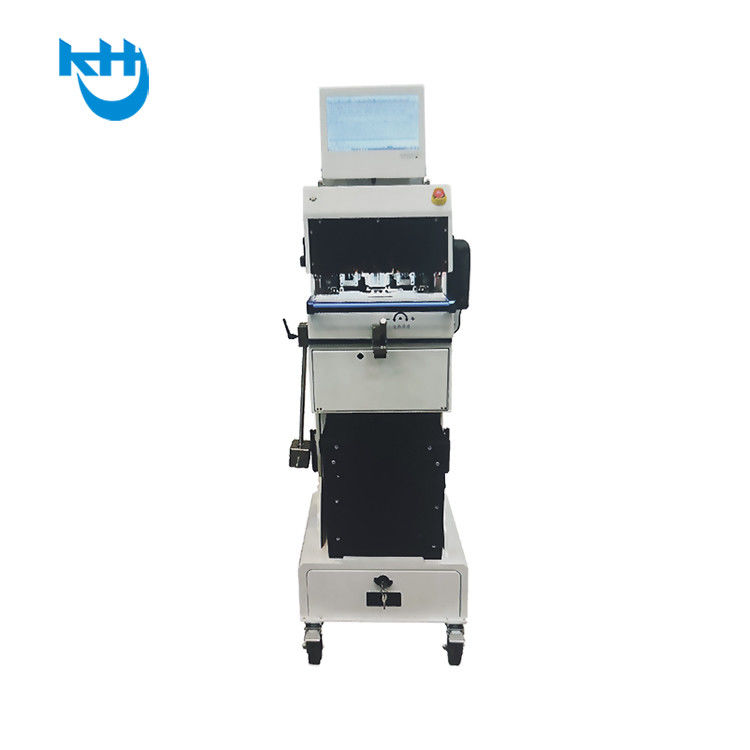

150W SMT Automatic Splicing Machine Low Noise Easy To Operate K-CR08

Name: 150W SMT Automatic Splicing Machine Low Noise Easy To Operate K-CR08
Brand: KangHongJin
SKU: K-CR08
Rating: 5 (146 reviews)

Product Details

Product Name:

K-CR08

Material:

PET Shell + Metal

High Light:

Automatic Splicing Machine, Tape Splicing Machine, Tape SMT Automatic Splicing Machine Recommended Products

Product Description

DESCRIPTION

K-CR08 Automatic splicing machine is developed to solve the pain points of the SMT splicing

industry, is committed to help customers improving production efficiency and reducing labor costs.

Part	K-CR08
Dimension (mm)	480(L) x 350(W) x 1390(H)mm
Conveyor Height	910mm
Carrier Tape Feeding accuracy	0.08mm
Size of the tape	8mm -24mm
Power	150W
Voltage	220V 50HZ
Full Charge Working Time	12 - 14H
Noise	50db
Pass rate	≥98%
Contact Mode	Wifi or net port
Vaccum pressure	-20-30Kpa
System	CPU 15, SSR:256G; WIN 10; Screen:11.6"
Belt winding function	Button control automatic
Weight	85KG

APPLICATION	ADVANTAGES
1. Apply to all types carrier tapes of 8-24mm.	1. LCR measurement function added to the
2. Long press the belt recycling button to	left and right tracks
achieve automatic carrier tapes collection	2. The pass rate of online operation reaches
3. Each roll splice tape with 1500pcs can	over 98%
be used continuously	3. Easy to operate
	4. Empty material level and spacing determination,
	automatic and accurate calibration of material
	cutting position

INSTRUCTIONS

1. Place AI splice tape into AI machine.

2. A/I machine precision cutting two carrier tape.

3. Place the carrier tapes in the designated position of the AI connector to automatically splice tape.

4. With accuracy placement for hold splicing hard.
