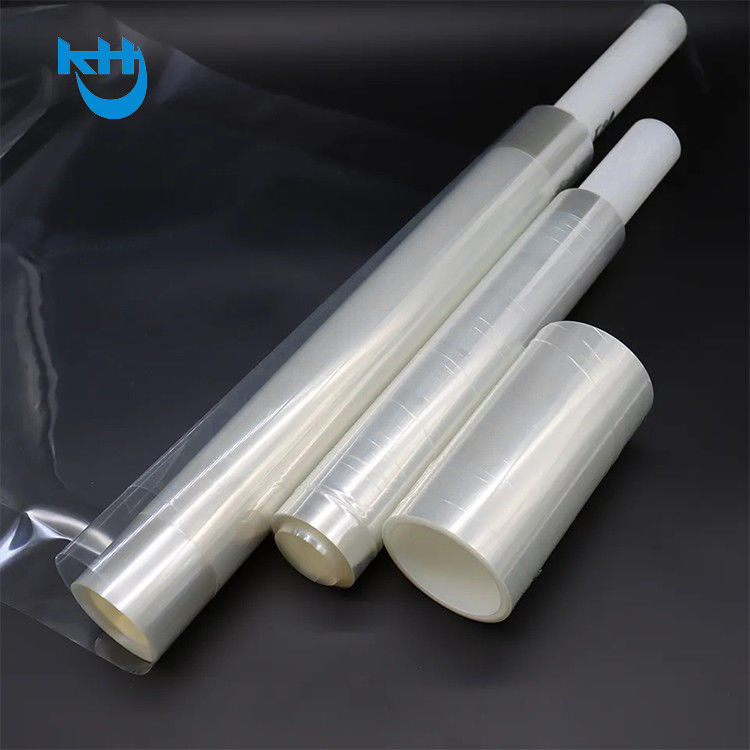

Transparent FEP Film Roll High Surface Flatness And Excellent Release
  • Transparent FEP Film Roll High Surface Flatness And Excellent Release
  • Transparent FEP Film Roll High Surface Flatness And Excellent Release
  • Transparent FEP Film Roll High Surface Flatness And Excellent Release
  • Transparent FEP Film Roll High Surface Flatness And Excellent Release
Transparent FEP Film Roll High Surface Flatness And Excellent Release

Transparent FEP Film Roll High Surface Flatness And Excellent Release

Place of Origin Guangdong, China
Brand Name KangHongJin
Certification RoHS
Model Number R09 Series
Product Details
Product Name:
PTFE Belt
Material:
PTFE +PET
High Light:
High Surface Flatness FEP Film, Excellent Release FEP Film Roll, FEP Film
Product Description
DESCRIPTION

R09 series FEP is a new type of crystalline perfluorocarbon polymer, which is a modified product of

polytetrafluoroethylene. Its long-term use temperature is -80~200 ℃, and it has excellent chemical
stability, outstanding surface non adhesion, low temperature mechanical strength, electrical
insulation, air tightness, folding resistance, and low water absorption and friction coefficient. It can
be exposed to the atmosphere for over 20 years.

 Part
 Material
 Thickness
 Width
 Color
 R08
 PTFE film
 0.01-0.2mm
 ≤1300mm
 White, black,
 red, yellow,   green, blue, etc
 R09
 Fep film
 0.025-0.25mm
 ≤1250mm(tape casting);   ≤550mm(blow m olding)
 Transparent
 R10
 PTFE belt
 0.13-1mm
 ≤2400mm
 Brown, white,   black, etc
 R11
 PTFE mesh belt
 0.6mm
 Custom
 Brown, black

 R12
 PTFE cloth
 0.08-1mm
 ≤2400mm
 Brown, white,   black, etc

 R13
 PTFE tape
 0.08,0.13,0.18,
 0.25mm(film base);
 0.13,0.16,0.18,
 0.25,0.3,0.4mm
 (cloth base)
 ≤500mm(film base) ;
 ≤1250mm(cloth base)
 Gray(film base);
 brown, white,
 black, etc
 (cloth base)

ADVANTAGES

1. Good heat sealing

2. Below the melting point, do not moisten

3. Good adhesion with metal

4. High and low temperature resistance: -200--200℃,High insulation

5. Volume resistance >1018ΩM, Surface resistance >2*1013Ω
6. Arc resistance >165 seconds no leakage
7. High transparency ultraviolet and visible light have good penetration
8. Has the lowest refraction coefficient relative to other plastics



INSTRUCTIONS

1. Drying machine for non-woven textile, textile printing, silk-printing and dyeing machine;

2. Shrinking machine for garment fabric, high-frequency and UV dryer;

3. Conveyor belt for hot-air dryer, various of food baking, quick-frozen machines;
4. Oiling machine for paper glazing and waxing, plant engineering;
5. Separating sheet for hardboard production etc.
6. Other applications which requires chemical and high - temperature resistance.
