customization Black PTFE Heat Resistant Adhesive Tape R12 Series

customization Black PTFE Heat Resistant Adhesive Tape R12 Series

Place of Origin Guangdong, China
Brand Name KangHongJin
Certification RoHS
Model Number R13 Series
Product Details
Product Name:
PTFE Tape (Film Base)
Material:
PTFE +PET
High Light:
PTFE Tape, PTFE Film Base Tape, Waterproof Fiberglass Tape, High Temperature PTFE Fiberglass Tape, Adhesive Tape
Product Description

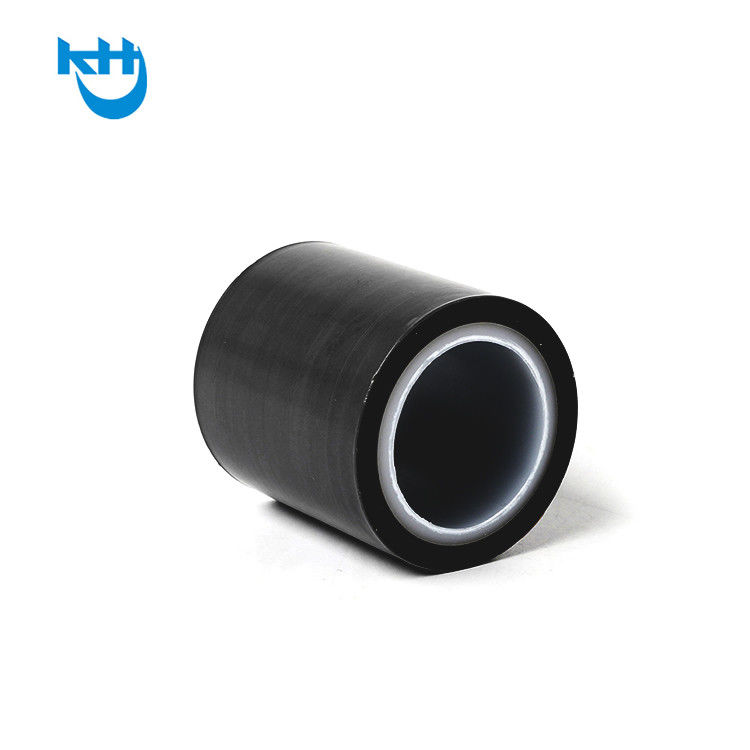

R12 Series Black PTFE Film Base Tape Insulating Tape Heat Sealing Resistance Silicone Adhesive PTFE Tape

DESCRIPTION

R12 series Black PTFE film base tape is used as base material and coated with silica gel, which

provides high temperature resistance and strong tensile strength and flexibility.
It is a new product of high performance and multi - purpose composite material.

 Part
 Material
 Thickness
 Width
 Color
 R08
 PTFE film
 0.01-0.2mm
 ≤1300mm
 White, black,
 red, yellow,   green, blue, etc
 R09
 Fep film
 0.025-0.25mm
 ≤1250mm(tape casting);   ≤550mm(blow m olding)
 Transparent
 R10
 PTFE belt
 0.13-1mm
 ≤2400mm
 Brown, white,   black, etc
 R11
 PTFE mesh belt
 0.6mm
 Custom
 Brown, black

 R12
 PTFE cloth
 0.08-1mm
 ≤2400mm
 Brown, white,   black, etc

 R13
 PTFE tape
 0.08,0.13,0.18,
 0.25mm(film base);
 0.13,0.16,0.18,
 0.25,0.3,0.4mm
 (cloth base)
 ≤500mm(film base) ;
 ≤1250mm(cloth base)
 Gray(film base);
 brown, white,
 black, etc
 (cloth base)

ADVANTAGES

1. Insulation: not affected by the environment and frequency; volume resistance up to 1018 Ω · cm; small dielectric loss; high breakdown voltage

2. High and low temperature resistance: can be used at -60~260℃

3. Self-lubricating: with the smallest friction coefficient of plastics(0.05-0.1), it is an ideal oil-free lubricating material

3. Non-stick PTFE film provides an exceptionally slick surface for easy clean-up

4. Atmospheric aging resistance, radiation resistance and low permeability: long-term exposure to the atmosphere, the surface and performance stay the same
5. Chemical resistance and weather resistance: polytetrafluoroethylene is almost impervious to any chemical attack except for molten alkali metals.



INSTRUCTIONS

1. Nonstick roll coverings for printing and textiles. Vinyl window manufacturing.

2. Tank seals and contaminant barriers, gaskets, membranes, seals & diaphragms, corrosion resistant

    chute, drum, hopper liners, lining of spray booths, guide rails.

3. Slot-stick and commutator; slot liners, spacers, field and armature winding; wire and cable

    insulation and protection for industry like LCD/FPC/PCB
4. Packaging: Form fill and seal, impulse/L - bar and poly bag sealing.
5. Composite mold release and bonding, vacuum bagging.
6. Other applications which requires chemical and high - temperature resistance.



ceo@szsmt. com

Tags:

high temperature resistant tape,

heat resistant electrical insulation tape,

PTFE sticky tape
