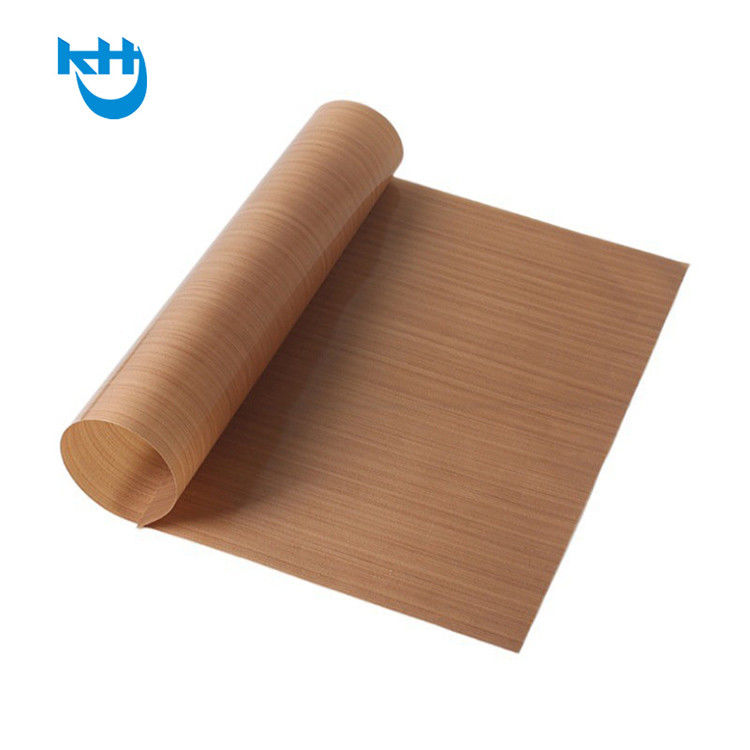

Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm
  • Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm
  • Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm
  • Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm
  • Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm
Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm

Customized PTFE Coated Fiberglass Fabric Teflon Coated Fiberglass Cloth 0.08-1mm

Place of Origin Guangdong, China
Brand Name KangHongJin
Certification RoHS
Model Number R12 Series
Product Details
Product Name:
PTFE Cloth
Material:
PTFE +PET
High Light:
PTFE Cloth, PTFE Coated Fiberglass Fabric, PTFE Sheet PTFE Coated Fiberglass Cloth Roll, Fiberglass Insulation
Product Description

R12 Series Brown Customized PTFE Fiberglass Fabric Glass Cloth PTFE Coated Cloth

DESCRIPTION

R12 series Brown PTFE cloth, based on polytetrafluoroethylene (commonly known as plastic king)

emulsion as raw material, impregnated high performance glass fiber cloth made of fiber cloth.
It is a new product of high performance and multi - purpose composite material.

 Part
 Material
 Thickness
 Width
 Color
 R08
 PTFE film
 0.01-0.2mm
 ≤1300mm
 White, black,
 red, yellow,   green, blue, etc
 R09
 Fep film
 0.025-0.25mm
 ≤1250mm(tape casting);   ≤550mm(blow m olding)
 Transparent
 R10
 PTFE belt
 0.13-1mm
 ≤2400mm
 Brown, white,   black, etc
 R11
 PTFE mesh belt
 0.6mm
 custom
 Brown, black

 R12
 PTFE cloth
 0.08-1mm
 ≤2400mm
 Brown, white,   black, etc

 R13
 PTFE tape
 0.08,0.13,0.18,
 0.25mm(film base);
 0.13,0.16,0.18,
 0.25,0.3,0.4mm
 (cloth base)
 ≤500mm(film base) ;
 ≤1250mm(cloth base)
 Gray(film base);
 brown, white,
 black, etc
 (cloth base)

ADVANTAGES

1. Insulation: not affected by the environment and frequency; volume resistance up to 1018 Ω · cm; small dielectric loss; high breakdown voltage

2. High and low temperature resistance: can be used at -170~380℃

3. Self-lubricating: with the smallest friction coefficient of plastics(0.05-0.1), it is an ideal oil-free lubricating material

3.Non-sticky surface: known solid materials can not adhere to the surface; It is a solid material with minimal surface energy

4. Atmospheric aging resistance, radiation resistance and low permeability: long-term exposure to the atmosphere, the surface and performance stay the same
5. Chemical resistance and weather resistance: polytetrafluoroethylene is almost impervious to any chemical attack except for molten alkali metals.



INSTRUCTIONS

1. Non stick lining, gaskets, blankets, and conveyor belts

2. Welding cloth used for welding and sealing plastic products; Plastic sheet, film, and heat sealing pressure sheet lining tape.
3. Electrical insulation tape base, spacer, gasket, and lining ring. High frequency copper clad plate.
4. Microwave pads, oven slices, and food drying;
5. Adhesive tape, transfer printing hot tablecloth, carpet adhesive curing conveyor belt, rubber vulcanizing conveyor belt, etc.
6. Canopies for various sports venues, station pavilions, umbrellas, landscape tents, etc.
7. Flexible compensator, friction material, grinding wheel slicing.
