Professional OEM SMT Consumables SMD Splice Tape For Siemens Carrier Tape

Name: Professional OEM SMT Consumables SMD Splice Tape For Siemens Carrier Tape
Brand: KangHongJin
SKU: M06 series
Rating: 4.6 (167 reviews)

Place of Origin	Guangdong, China
Brand Name	KangHongJin
Certification	RoHS
Model Number	M06 series

Product Details

Product Name:

M06 Series

Material:

PET

High Light:

Special Splice Tape, Siemens Splice Tape, Smt Siemens Splice Tape

Product Description

M06 Series Professional OEM SMT Consumables Special Splice Tape For Siemens Carrier Tape

DESCRIPTION

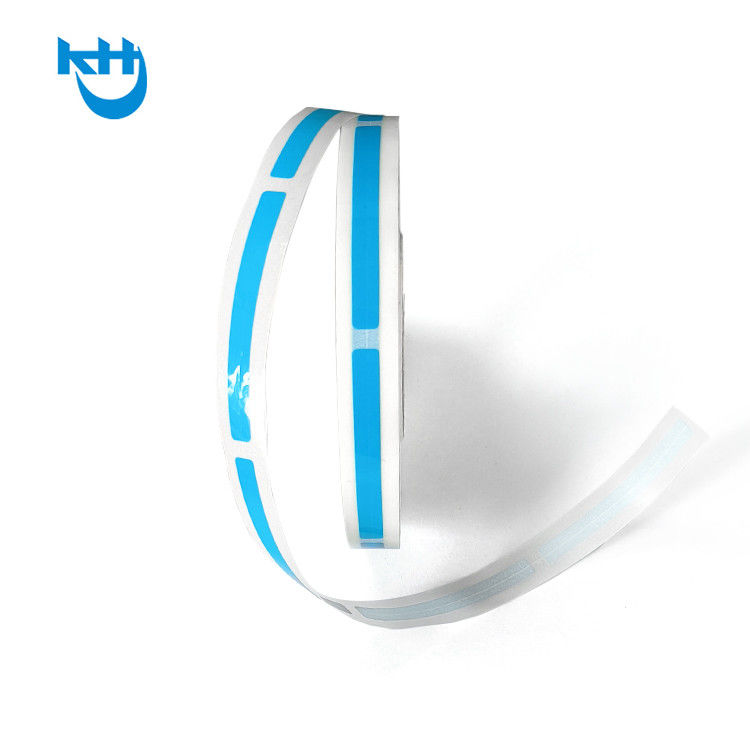

M06 series single splice tape is used for jointing carrier tapes in the SMT process. It is made of one

tapes and release paper with superior adhesion.

It's suitable for Siemens and Fuji machine.

Part (reel)	Dimensions (pc)	Package
M0608 (8mm)	4.8mm x 45mm	1000pcs/box
M0612 (12mm)	8mm x 45mm	1000pcs/box
M0616 (16mm)	12mm x 45mm	1000pcs/box
M0624 (24mm)	20mm x 45mm	1000pcs/box

APPLICATION	ADVANTAGES
1. Colored strips of PET tape	1. Increase Pick and Place machine output
on a roll used to join SMT carrier tapes	by 5% - 30%
2. Used with the splice pliers and clip to	2. Reduce reel change downtime
complete a stronger connection, especially	3. Decrease machine abrasion by reducing
on larger carrier tapes	the need to reload the feeder
3. 8mm-44mm available upon request	4. Tape strips on a roll for convenience
4. Suitable for Siemens and Fuji machine.	5. Pcs or reel packing are available.

INSTRUCTIONS

1. Use the cutting tool (MTL20/MTL30/MTL40) to accurately cut the carrier tapes.

2. Place a splice clip (teeth up) on the splice tool(MTL00/MTL10/MTL50)’s placement pins.

3.Center both carrier tapes (cover tape up) on the pins, and secure with the clamps.

4. Crimp the tool handle to connect the carrier tapes.

5. Remove the release liner of the splice tape to reveal the adhesive side.

6. Add a single strip to the cover tape and press firmly to complete the splice.
